E-commerce & Logistic

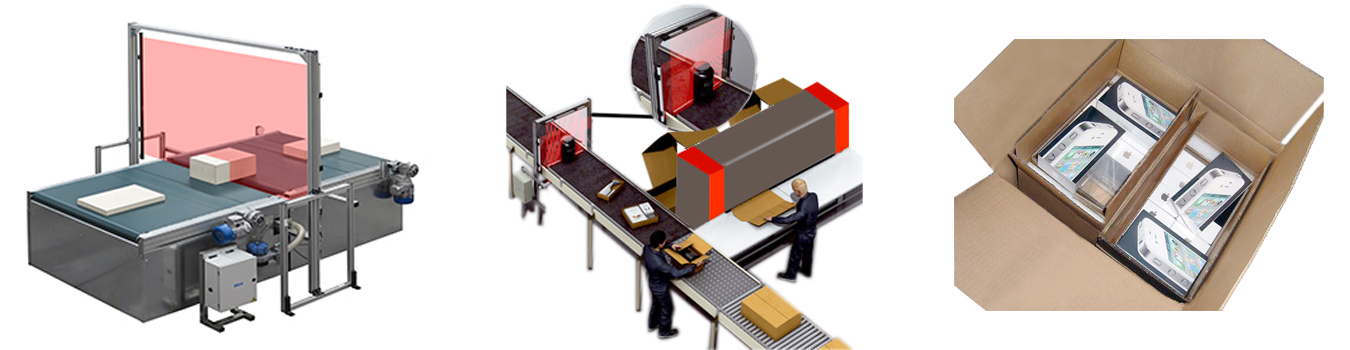

Volumetric gate VML to measure the products
The system is able to measure ensuring accuracy the dimensions of different objects, utilizing light grids, regardless of the surface quality and send the relevant data to Cutting Creasing machine.
The Cutting Creasing Machine receives the product’s dimensions and produces, just in time, the suitable American box fefco0201.
This optimizes the logistics chain and lowers logistics costs.
The measuring gate is placed in between two conveyor belts.
Accuracy: +- 5 mm
Comunication: Ethernet (infos: length, width, height)(TCP/IP)
Maximum product’s dimensions (LxWxH): 2500 mm x 1200 mm x 1200 mm;
Minimum product’s dimensions (LxWxH): 400 mm x 200 mm x 20 mm.

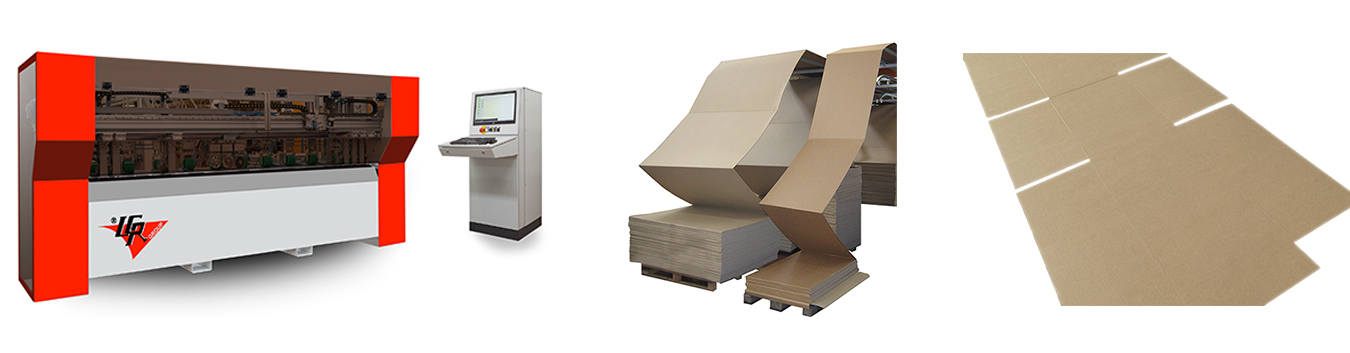

Automatic Cutting-Creasing Machine "Flexi Cut 2800"
Suitable to produce corrugated cardboard boxes on demand (e-commerce)
The Cutting Creasing Machine, by means of the Volumetric gate VML, receives the product’s dimensions and produces, just in time, the suitable American box fefco0201.

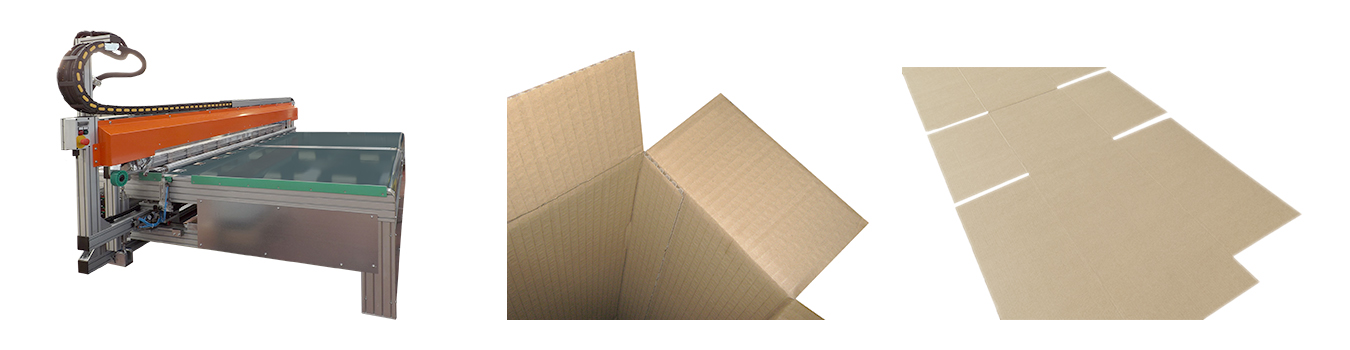

BoxGluer 2.8
Semi-automatic gluing system for the internal flap of the american boxes Fefco0201 (hot melt glue).
The system glues the internal flap so to speed up and facilitate the forming of the American box.
The operator folds the front flap, puts the box to zero under the crosswise axis and folds the rear flap; by means of a controlled transversal axis, an hot melt sprayer and pressers the flap is glued.
This optimizes the logistics chain and lowers logistics costs.

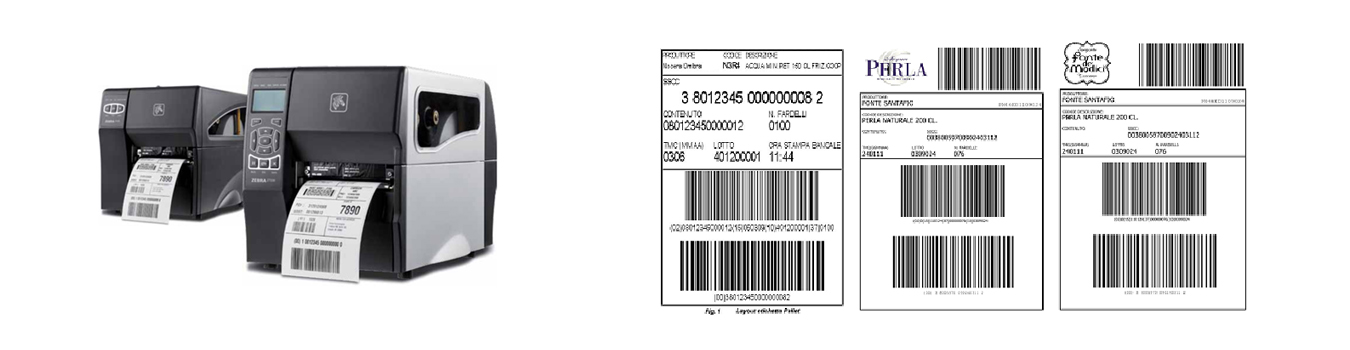

Industrial Labelling Machines Zebra A4 label format
Thermal transfer technology for adhesive labels up to A4 format with any kind of information (graphics, logos, bar codes etc.), to be applied on the boxes.
This optimizes the logistics chain.

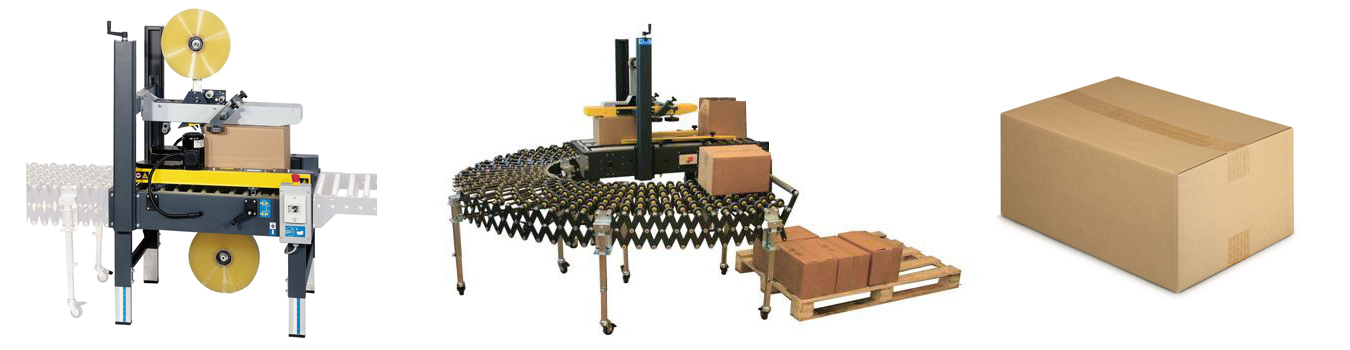

Carton Sealers - Box’s Strapping Machines
Strapping systems in the most efficient and cost-effective packaging solution.
From plastic strap to wet paper strap.
This kind of machines applies adhesive tape on the upper and the lower face of the american boxes fefco0201.
This optimizes the logistics chain.
