Cutting creasing machines to produce just in time on demand boxes

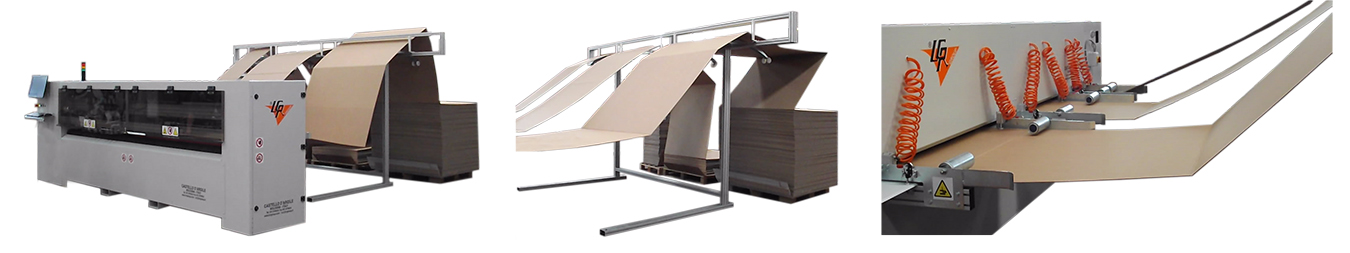

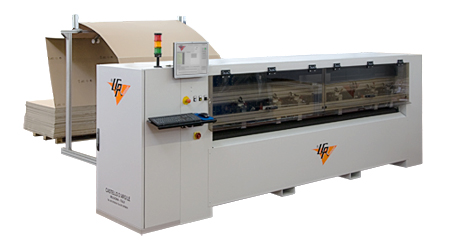

Semi-Automatic Cutting-Creasing Machine "Quark 2800"

-Suitable for small/big batches production-

Technical Features:

  • - Fan fold cardboard / Carboard sheets;
  • - Cardboard types: A,B,C,K,BA,BC,,EB (thickness from 1,5 up to 7 mm, mono/double wave);
  • - Max, cardboard width:2800mm;
  • - Max, cardboard  lenght: endless;
  • - Operator panel;
  • - Display of the positioning of the longitudinal cutting/creasing groups;
  • - CAD/CAM system with box's library FEFCO/LCR;
  • - Function to acquire production lists by uploading/downloading from Host (AS400, SAP, Server SQL);
  • - Production: 7/8 boxes/min;
  • - Hardware: Siemens Simotion;
  • - Software: CAD/CAM system LCR.

reader  PDF Catalogue

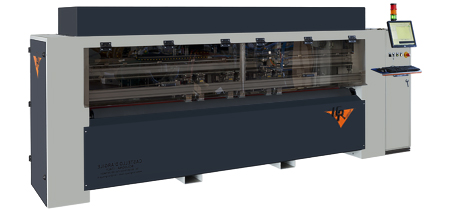

Automatic Cutting Creasing Machine "Vision 2800"

-Suitable for small/big batches production-



Technical Features:

  • - Production: 7/8 boxes/min;
  • - Groups positioning time from: 7 to 12 sec;
  • - Max. cardboards width: 2800 mm;
  • - Max. cardboards length: endless;
  • - Single fan fold cardboard/sheets;
  • - Cardboard types: A,B,C,K,BA,BC,EB mono/double wave;
  • - Operator panel;
  • - Thickness from 2 to 7 mm;
  • - CAD/CAM system with box's library FEFCO/LCR;
  • - Function to acquire production lists by uploading/downloading from Host (AS400, SAP, SQL).

reader PDF Catalogue

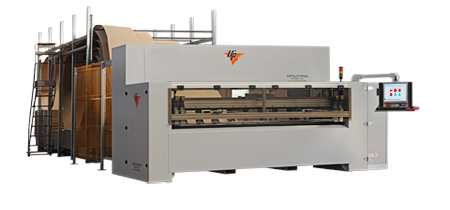

Automatic Cutting-Creasing Machine "Quark 2800"

-Suitable for both, batch and highly varied size production-

Quark automatica

Technical Features:

  • - Groups positioning time from: 2 to 4 sec;
  • - Production from 7/8 boxes/min;
  • - Single fan fold cardboard/Multiple fan fold cardboard/sheets;
  • - Number of the axis/cutting-creasing groups on demand;
  • - Adjustable operator panel with PC;
  • - Management of the single fan fold cardboards/Sheets;
  • - CAD/CAM system with box's library FEFCO/LCR;
  • - Function to acquire production lists by uploading/downloading from Host (AS400, SAP, Server SQL);
  • - Cardboard types A,B,C,K,BA,BC,EB (thickness from 1.5 up to 7 mm, mono/double wave);
  • - Max. Cardboard width: 2800mm;
  • - Max. Cardboard length: endless;
  • - Hardware: Siemens Simotion;
  • - Software: CAD/CAM system LCR.

reader PDF Catalogue


Automatic Cutting-Creasing Machine "Modular 2800"

-Suitable for both, batch and highly varied size production and high quantities-

Modular configuration and Technical Features:

  • - Number of the axis/cutting-creasing groups on demand;
  • - Single fan fold cardboard/Multiple fan fold cardboard/sheets;
  • - Multiple widths of fan fold cardboards/sheets;
  • - Two production modalities: single boxes in sequence or multiple boxes placed side by side;
  • - Simultaneous production of different types and dimensions;
  • - Adjustable operator panel with PC;
  • - CAD/CAM system with box's library FEFCO/LCR;
  • - Function to acquire production lists by uploading/downloading from host (AS400, SAP, Server SQL);
  • - Production from 10/11 boxes/min. up to 30/33 boxes/min;
  • - Cardboard types A,B,C,K,BA,BC,EB (thickness from 1.5 up to 7mm, mono/double wave);
  • - Max. Cardboard width:2800/3300 mm;
  • - Max. Cardboard length: endless;
  • - Hardware: Siemens Simotions;
  • - Software: CAD/CAM system LCR.

reader PDF Catalogue

 Box Examplesreader

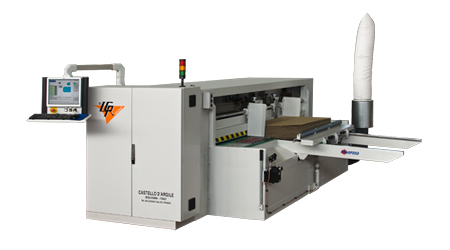

Cutting-Creasing Machine "Modular Star Feed"

-Automatic Cutting-Creasing Machine With High Performances + Cardboard Sheets Automatic Feeder "Star Feed"-

Modular configuration And Technical Features:

  • - Number of the axis/cutting-creasing groups on demand;
  • - Corrugated cardboard sheets type A,B,K,BA,BC,EB (thickness from 2 up to 7 mm);
  • - Single boxes in sequence or multiple boxes placed on the same sheet;
  • - Adjustable operator panel with PC;
  • - CAD/CAM system with box's library FEFCO/LCR;
  • - Function to acquire production lists by uploading/downloadingn from Host (AS400, SAP, Server SQL);
  • - Hardware: Siemens Simotion (Motion Controller);
  • - Software: CAD/CAM system LCR.
  • - Production: performance range 6-10 packages/min;
  • - Feeding speed: 40-100 m/min.



Feeder Technical Features:

  • - Maximum dimensions of the sheets: 3000x4000 mm;
  • - Maximum height of the sheets stack: 600 mm;
  • - Adjustable guides to keep in position the stack of the cardboard sheets;
  • - Motorised belts vacuum-operated by means of a suction fan;
  • - Sheets stack rear supports made of steel with idraulic lift.

reader PDF Download


Semi-Automatic Heavy Duty Cutting-Creasing Machine "BoxMaker Star Box"

-Suitable for small/big batches productions-

-Semi-automatic version with quick set-up-

  • Technical Features:
  • - It works cardboard thicknesses from 2.5 up to 18 mm;
  • - Basic cardboard weight up to 2600 gr/m2;
  • - Mono wave/double wave cardboards or three-layers cardboard;
  • - Cardboard sheets with dimensions from 350x600 up to 3000x12000 mm;
  • - Moreover it works fan-fold cardboard;
  • - Boxes productions of variable sizes and different shapes in one pass;
  • - Production performances: ~ 2-3 packages/min;
  • - Right/left/central reference by software;
  • - CAD CAM system and box's library fefco and LCR;
  • - Function to acquire production lists by uploading/downloading from Host (AS400, SAP, Server SQL);
  • - Motion controller Siemens Simotion;
  • - Servo-drive motors;
  • - Net light software;
  • - Production: performances range 6-10 packages/min;
  • - Feeding speed: 40-100 m/min.
